SM70 Mild Steel

MIG Wire Mild Steel

ER70S-6 AWS A 5.18

  Applications

MIG welding of mild & low alloy steels in all positions. Used for general fabrication, structural materials and maintenance.

  Usage Specifications

ER70S-6 is a copper coated solid wire designed for all position welding by short-circuiting type transfer. As the deposition efficiency is high and penetration is deep, highly efficient welding can be performed. It is supplied on 5 & 15 kg Precision Layer Wound Spools, or 250 - 300 Kg bulk Max-Pac’s.

  Welding Position                                                             Welding Current                                   Shielding Gas

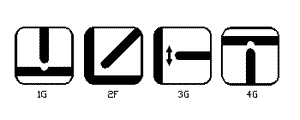

Welding Position Guide

DC+

Use welding grade CO2 / Argon + 15 - 25 % Flow rate of shielding gas should be approximately 25 L / Min.

  Typical Chemical Composition Of All-Weld Metal ( % )



C

Si

Mn

P

S

Cu

Typical

0.07

0.87

1.48

0.010

0.014

0.16

Minimum

0.06

0.80

1.40

+ / - 0.025

+ / - 0.025

+ / - 0.50

Maximum

0.15

1.15

1.85

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

420

500

28

-30

90

  Welding Data & Available Spool Size. With A.W.E Part Number

Wire Diameter

Current Range

1 kg Spool

5 kg Spool

15 kg Spool

Max-Pac

0.6 mm

30 ~ 100 amp

*M606R1

*M606R5

*ER70S606

-

0.8 mm

30 ~ 180 amp

*M608R1

ER70S6085

ER70S608

-

0.9 mm

50 ~ 220 amp

*M609R1

SM70095

ER70S609

ER70S609BP

1.0 mm

80 ~ 300 amp

-

-

ER70S610

ER70S610BP

1.2 mm

100 ~ 350 amp

-

-

ER70S612

ER70S612BP

  ( * = Random wound spools of wire. - = Not available )
