GP Electrodes

ARC

Welding Electrodes

S6013.LF

AWS A5.1 / ASME SFA5.1 E6013

JIS Z3211 D4313

  Applications

S-6013.LF can be used for welding machinery, vehicles, light structural steels and surface dressing of heavy steels structures.

  Usage Specifications

S-6013.LF is a low fume, high titania type of electrode. Fume generation is 20% less than that of a conventional high titania electrode.It is a general purpose electrode with a stable arc, shallow penetration and a smooth welding bead.

  Welding Position                                                         Welding Current                                    Usage Notes

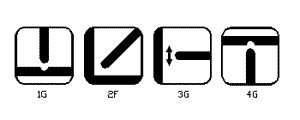

Welding Position Guide

AC or DC +/-

Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes before use.

Do not exceed the recommended current for the electrode size.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.05

0.23

0.35

0.022

0.017

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

439

488

26.8

0

67

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S6013LF26

45 ~ 95

5 Kg

20 Kg

S6013LF32

60 ~ 130

5 Kg

20 Kg

S6013LF40

100 ~ 180

5 Kg

20 Kg

S6013.V

AWS A5.1 / ASME SFA5.1 E6013

JIS Z3211 D4313

  Applications

S-6013.V can be used for welding of sheet steel structures in ships, railway vehicles, cars, surface dressing of heavy steel structures.

  Usage Specifications

S-6013.V is a high titania electrode with remarkably improved workability. It is suitable for welding thin pipe . And is excellent for vertical down welding.

  Welding Position                                          Welding Current                                            Usage Notes

S6013V Position guide

AC or DC +/-

Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes before use.

Do not exceed the recommended current for the electrode size.

In case of vertical down welding, manipulate the electrode, keeping its tip in contact with the base metal.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.06

0.31

0.53

0.026

0.015

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

451

497

28.2

0

86

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S6013V26

60 ~ 100

5 Kg

20 Kg

S6013V32

100 ~ 140

5 Kg

20 Kg

S6013V40

140 ~ 190

5 Kg

20 Kg

S7016.H

AWS A5.1 / ASME SFA5.1 E7016

JIS Z3212 D5016

  Applications

S-7016.H can be used for welding high tensile steel such as bridges, buildings, shipbuilding, high pressure vessels and rolling stock.

  Usage Specifications

S-7016H has excellent crack resistance and x-ray performance. A soft and stable ARC, with a smooth appearance, good fluidity and slag removable, with no undercut formation.

  Welding Position                                                         Welding Current                                    Usage Notes

Welding Position Guide

AC or DC +

Screen work area against strong winds.

Dry the electrodes at 300 ~ 350'C for 30 ~ 60 minutes before use.

Adopt back step method when starting the ARC to prevent blow through.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.07

0.32

1.13

0.017

0.011

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

490

580

30.3

-29

80

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S7016H26

50 ~ 80

5 Kg

20 Kg

S7016H32

80 ~ 120

5 Kg

20 Kg

S7016H40

110 ~ 170

5 Kg

20 Kg

S7016.LF

AWS A5.1 / ASME SFA5.1 E7016

JIS Z3212 D5016

  Applications

S-7016.LF can be used for welding high tensile steel. Such as bridges, ships and pressure vessels.

  Usage Specifications

 S-7016.LF is a low hydrogen type of electrode. Fume generation is 20 ~ 30% lower than a conventional electrode. X-ray and mechanical properties are good , as is its resistance to cracking due to the low hydrogen content.

  Welding Position                                                         Welding Current                                    Usage Notes

Welding Position Guide

AC or DC +

Keep the ARC as short as possible.

Dry the electrodes at 300 ~ 350'C for 30 ~ 60 minutes before use.

Adopt back step method when starting the ARC to prevent blow through.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.07

0.35

1.10

0.016

0.011

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

485

583

31.0

-29

75

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S7016LF26

50 ~ 80

5 Kg

20 Kg

S7016LF32

80 ~ 130

5 Kg

20 Kg

S7016LF40

110 ~ 170

5 Kg

20 Kg

S7018.G

AWS A5.1 / ASME SFA5.1 E7018

JIS Z3212 D5016

  Applications

S-7018.G can be used for highly efficient welding of 7,300 lbs/in2 class high tensile steel, such as bridges, buildings, rolling stock and machines.

  Usage Specifications

S-7018.G is an iron powder low hydrogen type of electrode of high efficiency for welding high tensile steel.

  Welding Position                                                         Welding Current                                    Usage Notes

Welding Position Guide

AC or DC +

Keep the ARC as short as possible.

Dry the electrodes at 350 ~ 400'C for 30 ~ 60 minutes before use.

Adopt back step method when starting the ARC to prevent blow through.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.06

0.50

1.20

0.017

0.011

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

504

572

29.8

-29

111

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S7018G26

50 ~ 80

5 Kg

20 Kg

S7018G32

80 ~ 120

5 Kg

20 Kg

S7018G40

120 ~ 170

5 Kg

20 Kg

S7024.F

AWS A5.1 / ASME SFA5.1 E7024

JIS Z3211 D4324

  Applications

S-7024.F can be used for welding of flat and horizontal fillet welding of internal structures, inside hulls, buildings and machine construction.

  Usage Specifications

S-7024.F is a representative powder titania type of electrode, which is widely used for flat and horizontal fillet welding.

  Welding Position                                                         Welding Current                                    Usage Notes

S7024F position Guide

AC or DC +/-

Keep the ARC as short as possible.

Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes if the electrodes are moist.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

0.08

0.42

0.82

0.022

0.014

  Typical Mechanical Properties of All-Weld Metal

Y.S N/mm sq

T.S N/mm sq

E.L ( % )

Temp 'C

Impact Test-J cvn

495

569

27.8

0

48

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S7024F32

100 ~ 150

5 Kg

20 Kg

S7024F40

140 ~ 200

5 Kg

20 Kg

S600B.B

JIS Z3251 DF2B-600-B

  Applications

Suitable for inter metallic heavy abrasion and soil abrasion. Hard facing of lower rollers and bucket edges.

  Usage Specifications

S600B.B is an electrode depositing all weld metal of typical martensite structure. It is suitable for soil abrasion. the weld softens with heat.

  Welding Position                                                         Welding Current                                    Usage Notes

S7024F position Guide

AC or DC +

Preheat work at 150'C or above.

Dry the electrodes at 350 ~ 400'C for  60 minutes before use.

When multi-layer build up or base metal welding of hardening property, under lay with low hydrogen type carbon steel electrodes.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

Cr

Mo

0.52

1.10

1.61

0.022

0.009

3.90

1.34

  Typical Mechanical Composition Of All-Weld Metal (%)

Preheat Temp

Post Heat

Heat Treatment

Hardness (HB)

150’C

-

-

610

300’C

-

-

580

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S600BB32

90 ~ 140

5 Kg

20 Kg

S600BB40

140 ~ 190

5 Kg

20 Kg

S700B.B

JIS Z3251 DF3C-600-B

  Applications

Hard facing of cutting knives and castings. Suitable for soil abrasion applications.

  Usage Specifications

S700B.B is an electrode depositing weld metal of martensite which is harder than that of S600BB. Machining of the weld metal is impossible. Most suitable for soil abrasion applications.

  Welding Position                                                         Welding Current                                    Usage Notes

S7024F position Guide

AC or DC +

Preheat work at 150'C or above.

Post heat work at 600'C if possible.

Dry the electrodes at 350 ~ 400'C for  60 minutes before use.

When multi-layer build up or base metal welding of hardening property, under lay with low hydrogen type carbon steel electrodes.

  Typical Chemical Composition Of All-Weld Metal (%)

C

Si

Mn

P

S

Cr

Mo

0.56

1.26

1.67

0.029

0.011

4.06

1.84

  Typical Mechanical Composition Of All-Weld Metal (%)

Preheat Temp

Post Heat

Heat Treatment

Hardness (HB)

150’C

-

-

540

300’C

-

-

500

600’C

-

-

450

  Available Size, Code & Recommended Currents (Amps)

Code

Current Range

Pack Size

Carton Size

S700BB32

90 ~ 140

5 Kg

20 Kg

S700BB40

140 ~ 190

5 Kg

20 Kg
